Pentax Endoscope Pulley Assy
12月 23, 2021

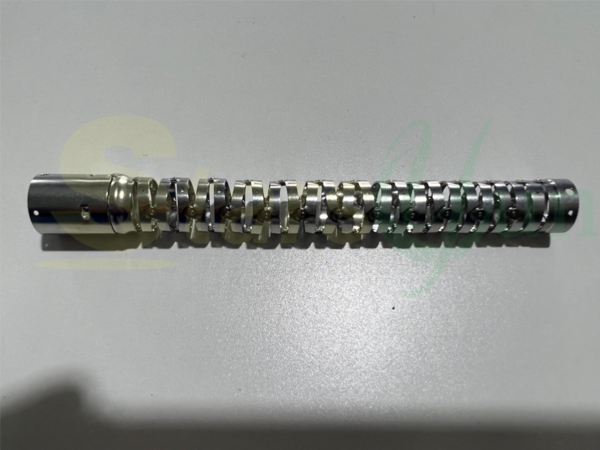

Endoscope Bending Section
Bending section assembly
Bending sections
The models are as follows:
| Endoscope Bending Section | |||||||
|---|---|---|---|---|---|---|---|
| Product Number | Adaptation model | OD | TH | ID | Length | Material | Brand |
| XYOBS1 | GIF-XQ240 | ￠8.5 | 0.3 | ￠4.9 | 68 | S304 | Olympus |
| XYOBS2 | GIF-Q180/Q150/Q165 | ￠8.5 | 0.3 | ￠4.8 | 68 | S304 | Olympus |
| XYOBS3 | GIF-160 | ￠8.5 | 0.3 | ￠4.8 | 68 | S304 | Olympus |
| XYOBS4 | GIF-V70 | ￠8.5 | 0.3 | ￠4.8 | 73 | S304 | Olympus |
| XYOBS5 | GIF-Q260 | ￠8.7 | 0.25 | ￠5.3 | 68 | S304 | Olympus |
| XYOBS6 | GIF-H260 | ￠8.8 | 0.25 | ￠5.1 | 72 | S304 | Olympus |
| XYOBS7 | GIF-Q160 | ￠8.8 | 0.3 | ￠5.0 | 73 | S304 | Olympus |
| XYOBS8 | GIF-140 | ￠8.8 | 0.3 | ￠5.0 | 72 | S304 | Olympus |
| XYOBS9 | GIF-Q240 | ￠8.8 | 0.3 | ￠5.0 | 74 | S304 | Olympus |
| XYOBS10 | GIF-Q145 | ￠9.0 | 0.3 | ￠5.1 | 72 | S304 | Olympus |
| XYOBS11 | GIF-H180 | ￠9.1 | 0.3 | ￠5.1 | 75 | S304 | Olympus |
| XYOBS12 | GIF-H190/GIF-H185/GIF-H170 | ￠8.9 | 0.25 | ￠5.1 | 65.6 | S304 | Olympus |
| XYOBS13 | GIF-HQ190 | ￠9.5 | 0.3 | ￠5.5 | 74.5 | S304 | Olympus |
| XYOBS14 | GIF-Q140 | ￠9.5 | 0.3 | ￠5.5 | 75 | S304 | Olympus |
| XYOBS15 | PCF-160AL | ￠9.7 | 0.3 | ￠5.7 | 99 | S304 | Olympus |
| XYOBS16 | PCF-Q180AL | ￠9.7 | 0.3 | ￠5.7 | 99 | S304 | Olympus |
| XYOBS17 | PCF-Q260AL/I | ￠9.7 | 0.3 | ￠5.7 | 98 | S304 | Olympus |
| XYOBS18 | PCF-240L | ￠9.7 | 0.3 | ￠5.7 | 99 | S304 | Olympus |
| XYOBS19 | PCF-H180AL | ￠10.2 | 0.3 | ￠6 | 99 | S304 | Olympus |
| XYOBS20 | PCF-H190L | ￠10.4 | 0.3 | ￠6.2 | 96 | S304 | Olympus |
| XYOBS21 | PCF-H190DL | ￠10.85 | 0.3 | ￠6.6 | 98 | S304 | Olympus |
| XYOBS22 | CF-Q260DL | ￠10.9 | 0.3 | ￠6.7 | 111 | S304 | Olympus |
| XYOBS23 | CF-240L | ￠10.9 | 0.35 | ￠6.5 | 111 | S304 | Olympus |
| XYOBS24 | TJF-260 | ￠11.0 | 0.3 | ￠6.4 | 54 | S304 | Olympus |
| XYOBS25 | TJF-160 | ￠11.0 | 0.3 | ￠6.4 | 54 | S304 | Olympus |
| XYOBS26 | TJF-240 | ￠11.0 | 0.3 | ￠6.4 | 54 | S304 | Olympus |
| XYOBS27 | CF-Q160AL/Q145/Q150/Q165/CF-H185L/i, CF-Q145i/L and CF-H170L/i | ￠11.7 | 0.4 | ￠7.3 | 113 | S304 | Olympus |
| XYOBS28 | CF-Q180AL | ￠11.7 | 0.4 | ￠7.3 | 113 | S304 | Olympus |
| XYOBS29 | CF-H180AL | ￠11.7 | 0.4 | ￠7.3 | 112 | S304 | Olympus |
| XYOBS30 | CF-Q160I | ￠11.7 | 0.4 | ￠7.3 | 113 | S304 | Olympus |
| XYOBS31 | CF-Q140I | ￠11.7 | 0.4 | ￠7.3 | 113 | S304 | Olympus |
| XYOBS32 | CF-HQ190 | ￠11.7 | 0.4 | ￠7.3 | 109 | S304 | Olympus |
| XYOBS33 | CF-HQ290 | ￠11.7 | 0.4 | ￠7.3 | 109 | S304 | Olympus |
| XYOBS34 | CF-V70I/H260AI | ￠11.7 | 0.4 | ￠7.3 | 109 | S304 | Olympus |
| XYOBS35 | BF-1T180 | ￠5.6 | 0.15 | ￠4.0 | 54.7 | S304 | Olympus |
| XYSBS1 | 11272CU1 | ￠4.65 | 0.15 | ￠3.2 | 49.5 | S304 | STORZ |
| XYSBS2 | 11292BD1 | ￠3.2 | 0.12 | ￠2.0 | 32.5 | S304 | STORZ |
| XYPBS1 | EG-2990I | ￠9.1 | 0.25 | ￠5.8 | 72 | S304 | Pentax |
| XYPBS2 | EG-2990K | ￠9.1 | 0.25 | ￠5.8 | 66 | S304 | Pentax |
| XYPBS3 | EG-29i10 | ￠9.1 | 0.25 | ￠5.8 | 70 | S304 | Pentax |
| XYPBS4 | EG-290KP | ￠9.1 | 0.25 | ￠5.8 | 70 | S304 | Pentax |
| XYPBS5 | EG-290V | ￠9.1 | 0.25 | ￠5.8 | 68.6 | S304 | Pentax |
| XYPBS6 | EG-2770K | ￠8.3 | 0.25 | ￠4.8 | 64 | S304 | Pentax |
| XYPBS7 | EG27-i10 | ￠8.3 | 0.25 | ￠4.8 | 63 | S304 | Pentax |
| XYPBS8 | EG-2790K | ￠8.3 | 0.25 | ￠4.8 | 66 | S304 | Pentax |
| XYPBS9 | EC-3890FK/FKP/FKZP | ￠11.6 | 0.3 | ￠7.1 | 102 | S304 | Pentax |
| XYPBS10 | EC-380LKP | ￠11.6 | 0.3 | ￠7.1 | 102 | S304 | Pentax |
| XYPBS11 | EC-3890SI | ￠11.6 | 0.3 | ￠7.1 | 101 | S304 | Pentax |
| XYPBS12 | EC34-i10L | ￠10.5 | 0.25 | ￠10.00 | 98 | S304 | Pentax |
| XYPBS13 | FG-29W | ￠9.1 | 0.25 | ￠5.8 | 68.6 | S304 | Pentax |
| XYPBS14 | EC34-i10F | ￠10.6 | 0.25 | ￠10.00 | 95.25 | S304 | Pentax |
| XYFBS1 | EG-530FP | ￠7.6 | 0.15 | ￠4 | 70.7 | S304 | Fujifilm |
| XYFBS2 | EG-530WR | ￠8.3 | 0.25 | ￠4.7 | 70.7 | S304 | Fujifilm |
| XYFBS3 | EG-250WR5 | ￠8.3 | 0.25 | ￠4.7 | 70.7 | S304 | Fujifilm |
| XYFBS4 | EG-590WR | ￠9.6 | 0.2 | ￠5.8 | 72.5 | S304 | Fujifilm |
| XYFBS5 | EG-600 | ￠8.8 | 0.25 | ￠5.2 | 68.4 | S304 | Fujifilm |
| XYFBS6 | EC-530WI/WM/WL | ￠11.9 | 0.25 | ￠9.7 | 97.8 | S304 | Fujifilm |
| XYFBS7 | EC-250WL5/WM5 | ￠11.9 | 0.25 | ￠9.7 | 97.8 | S304 | Fujifilm |
| XYFBS8 | EC-600WM | ￠11.2 | 0.25 | ￠9.0 | 99.9 | S304 | Fujifilm |
| XYFBS9 | EC-590WI4/WM4/WL4 | ￠11.9 | 0.25 | ￠9.7 | 102.8 | S304 | Fujifilm |
| XYFBS10 | EC-590ZW/M | ￠12.5 | 0.35 | ￠11.8 | 118 | S304 | Fujifilm |
| XYBS1 | φ1.8 | ￠1.8 | 0.1 | ￠0.9 | 25 | S304 | |
| XYBS2 | φ2.1 | ￠2.1 | 0.1 | ￠1.1 | 24.4 | S304 | |
| XYBS3 | φ2.1（industry） | ￠2.1 | 0.1 | ￠1.0 | 25 | S304 | |
| XYBS4 | φ2.4 | ￠2.4 | 0.1 | ￠1.2 | 24.4 | S304 | |
| XYBS5 | φ2.4（industry） | ￠2.4 | 0.1 | ￠1.2 | 25 | S304 | |
| XYBS6 | φ2.6 | ￠2.6 | 0.1 | ￠1.4 | 24 | S304 | |
| XYBS7 | φ2.6 | ￠2.6 | 0.1 | ￠1.4 | 68 | S304 | |
| XYBS8 | φ2.7 | ￠2.7 | 0.1 | ￠1.5 | 68 | S304 | |
| XYBS9 | φ2.8 | ￠2.8 | 0.1 | ￠1.6 | 24 | S304 | |
| XYBS10 | φ3.0 | ￠3.0 | 0.1 | ￠1.8 | 68 | S304 | |
| XYBS11 | φ3.2 | ￠3.2 | 0.12 | ￠1.8 | 32 | S304 | |
| XYBS12 | φ3.2（industry） | ￠3.2 | 0.12 | ￠1.8 | 29.2 | S304 | |
| XYBS13 | φ3.4 | ￠3.4 | 0.12 | ￠2.0 | 32 | S304 | |
| XYBS14 | φ3.6 | ￠3.6 | 0.12 | ￠2.2 | 34 | S304 | |
| XYBS15 | φ3.7 | ￠3.7 | 0.12 | ￠2.4 | 34 | S304 | |
| XYBS16 | φ4.0 | ￠4.0 | 0.12 | ￠2.6 | 34 | S304 | |
| XYBS17 | φ4.2 | ￠4.2 | 0.12 | ￠2.8 | 34 | S304 | |
| XYBS18 | φ4.3 | ￠4.3 | 0.12 | ￠2.9 | 34 | S304 | |
| XYBS19 | φ4.5 | ￠4.5 | 0.12 | ￠3.1 | 38.5 | S304 | |
| XYBS20 | φ4.65 | ￠4.65 | 0.15 | ￠3.2 | 40 | S304 | |
| XYBS21 | φ4.76 | ￠4.76 | 0.15 | ￠3.3 | 44 | S304 | |
| XYBS22 | φ4.8 | ￠4.8 | 0.15 | ￠3.3 | 44 | S304 | |
| XYBS23 | φ4.9 | ￠4.9 | 0.15 | ￠3.4 | 44 | S304 | |
| XYBS24 | φ5.0 | ￠5.0 | 0.15 | ￠3.5 | 40 | S304 | |
| XYBS25 | φ5.0（industry） | ￠5.0 | 0.15 | ￠2.8 | 43 | S304 | |
| XYBS26 | φ5.1 | ￠5.1 | 0.15 | ￠3.6 | 40 | S304 | |
| XYBS27 | φ5.2 | ￠5.2 | 0.15 | ￠3.7 | 40 | S304 | |
| XYBS28 | φ5.3 | ￠5.3 | 0.15 | ￠3.8 | 40 | S304 | |
| XYBS29 | φ5.4 | ￠5.4 | 0.15 | ￠3.8 | 40 | S304 | |
| XYBS30 | φ5.5 | ￠5.5 | 0.15 | ￠3.8 | 40 | S304 | |
